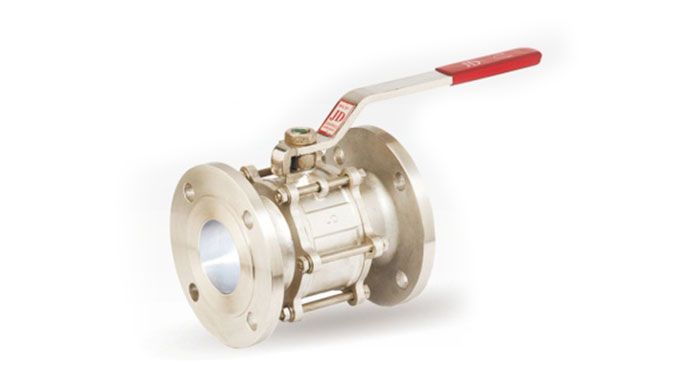

JD Controls mfg. High performance Ball Valve as per international design and standard to get 100% Client Satisfaction and repeat order with total interchangeability, superior quality, workmanship & service. These Ball Valves come in Single Piece (1/2 to 4) / Two Piece (1 to 8) as well as in Three Piece Design (1/2 to 12) to suit various critical, non-critical applications and pressure rating up to 1500 class in both full bore & regular (reduce) bore design.
JD P.T.F.E. seated Ball Valves gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20° C. to +220° C. Electro-Polished, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on request.
JD Controls mfg. both Floating & Trunnion Mounted Ball Valves. In the floating ball design, where sealing takes place by allowing the Ball under pressure to move towards the downstream seat to effect tight seal. For higher sizes and pressure ratings Trunnion mounted ball valves are preferred by industry.

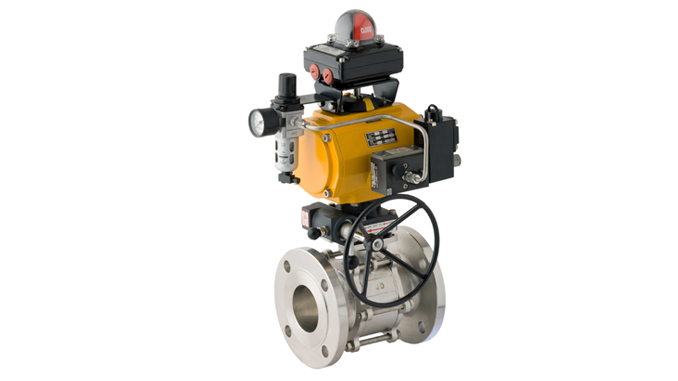

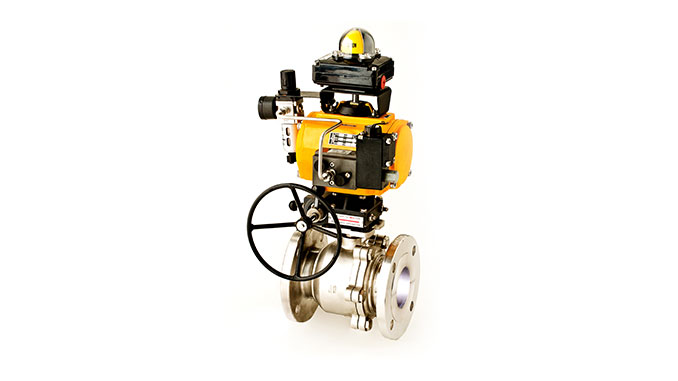

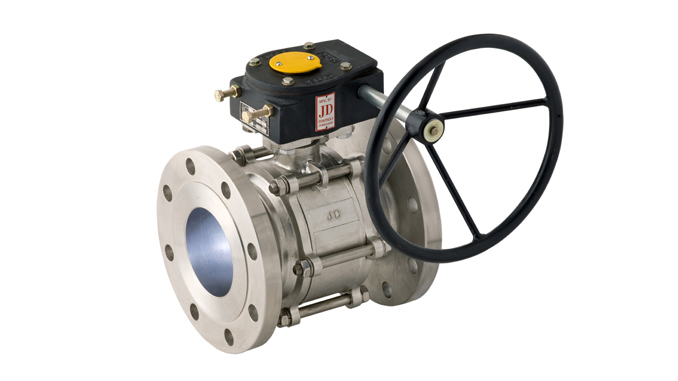

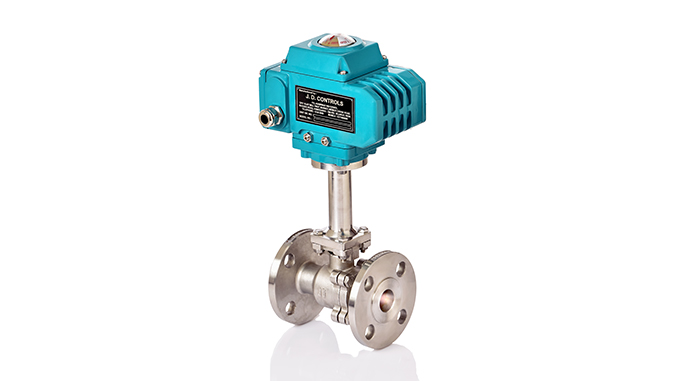

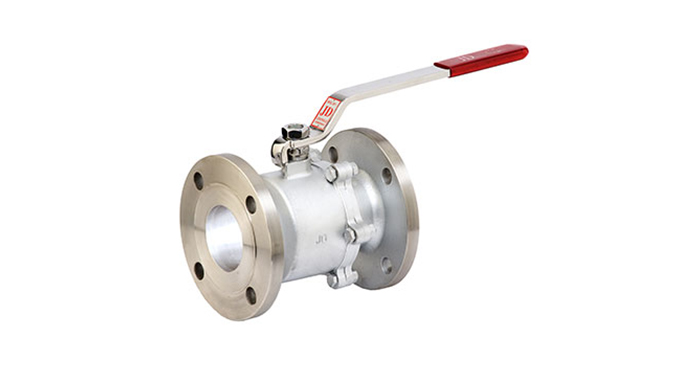

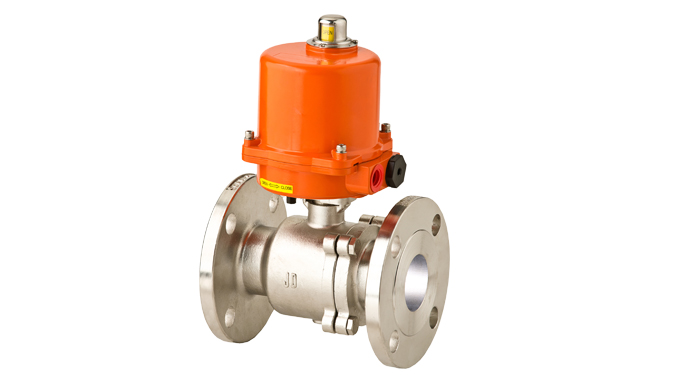

JD Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size. JD also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation.
JD Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size. JD also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation.
| Two Way Ball Valve - [ 1 Piece / 2 Piece / 3 Piece Design ] | ||
|---|---|---|
| Availability [Size] | : | DN15 / 15MM / 1/2" To DN300 /300MM /12" [Flanged End] DN15 /15MM /1/2" To DN100 / 100MM / 4" [Screwed End] |
| MOC | : | WCB [CS] / CF8 [SS 304] / CF8M [SS 316] / CF3M [SS 316L] |
| Ball | : | CF8 [SS 304] / CF8M [SS 316] / CF3M [SS 316L] |
| Stem | : | AISI 304 / 316 / 304L / 316L |
| Ball Seat/Gland Seal/Stem Seal | : | P.T.F.E. / P.T.F.E. Glass Filled / P.T.F.E. Carbon Filled |
| Pressure Class | : | 150# /300# /600# /800# |
| Operation | : | Manual / Pneumatic / Electrical |
| Valve Design | : | BS EN ISO 17292 [BS 5351] / ASME B 16.34 / API 6D / BE EN ISO 12516 |
| Pressure Testing | : | API 598 / API 6D / BS EN 12266 I [BS 6755 Part I] |
| Fire Safe Testing | : | API 607 / API 6FA / BS EN ISO 12266 Part II [BS 6755 PART II] |
| Face to Face | : | ANSI B 16.10 |
| Flange Drilling | : | ANSI 16.5 |
| Butt Weld End | : | ANSI B 16.25 |
| Socket Weld End | : | ANSI B 16.11 |
| Screwed End | : | ANSI B 1.20.1 [BSP/NPT] |
