Fire Safe Ball Valves

Floating / Trunnion Mounted

JD Controls mfg. both Floating & Trunnion Mounted Fires Safe Ball Valves. In the floating ball design, where sealing takes place by allowing the Ball under pressure to move towards the downstream seat to effect tight seal. For higher sizes and pressure ratings Trunnion mounted ball valves are preferred by industry.

Valve Operation

JD Fire Sate Ball Valves are generally supplied with manual Hand Lever or Gear Operated, depending on valve size. J D also offering Ball Valves with either Pneumatic (Double Acting / Single Acting – Spring Return) or Electrical actuator operated for automation.

Wide Range of Body Seat, Seal & Packing

JD Fire Safe Ball Valves are also available with different type of Seat, Seal & Packing material such as P.T.F.E. (Virgin) / Glass Filled P.T.F.E. / Carbon Filled P.T.F.E. / Graphite (Grafoil) / PEEK to suit special requirement of client.

SALIENT FEATURES

• Blowout Proof Stem
• Anti Static Device
• Space saving.

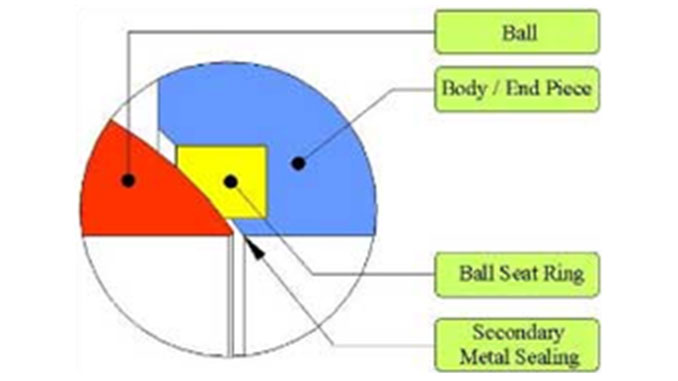

• Fire Safe Seat Design
• Double Body Sealing Ensures Positive Body Joint Sealing Against Pipeline Stresses
• Multiple Stem Sealing
• Live loaded Stem Design Meets Stringent Fugitive Norms
• Specially designed seats and seals in a variety of materials to suit specific applications
• Fire Safe Design Confirms to API 607, Valves are tested and Fire Safe certified by Bureau Veritas.
• Design standard API 6D, BS EN ISO 17292 and ANSI B16.34
• Design standard API 6D, BS EN ISO 17292 and ANSI B16.34
