Purpose

Four way Ball Valve is available in “L” Port / “T Port to meet the service condition.

Types

  • L Port
  • T port
  • “LL” [X] Port: It has four ports equally spaced round the valve chamber and the ball has two passages to connect the adjacent ports.It has two flow positions as shown, and usually a central position where all ports are closed.

Application of 4 Way Ball Valve

  • Air Dryers
  • CO2 Dryers
  • ELPG Compress

Advantages

  • Multiple no of valves can be replaced by few no of valves.
  • Reduced Labour & Maintenance cost.
  • Space saving.
  • Flow diversion or Mixing can be more precise.

Availability

Availability [Size] : DN25 / 25MM / 1" To DN300 / 300MM / 12"


4 Way Ball Valve [L / T / LL [X] Port]
Availability [Size] : DN25 / 25MM / 1" To DN300 / 300MM / 12"
MOC : WCB [CS] / CF8 [SS 304] / CF8M [SS 316] / CF3M [SS 316L] / Hast Alloy B/C / Hast Alloy 20
Ball : CF8 [SS 304] / CF8M [SS 316] / CF3M [SS 316L] / Hast Alloy B/C / Hast Alloy 20
Stem : AISI 410 / 304 / 316 / 304L / 316L / Hast Alloy B/C / Alloy 20
Ball Seat/Gland Seal/Stem Seal : P.T.F.E. Virgin / P.T.F.E. Glass Filled / P.T.F.E. Carbon Filled / Grafoil
Pressure Class : 150# / 300# / 600# / 900#

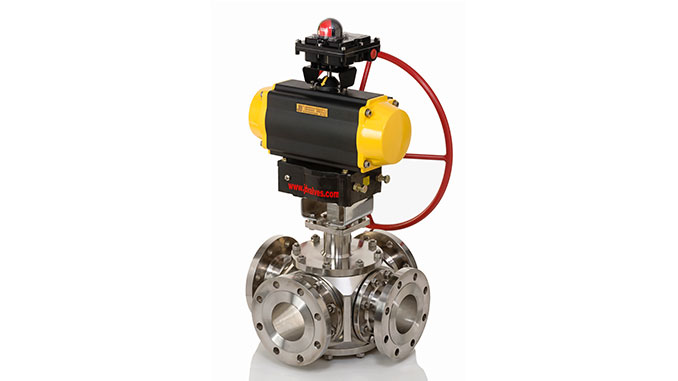

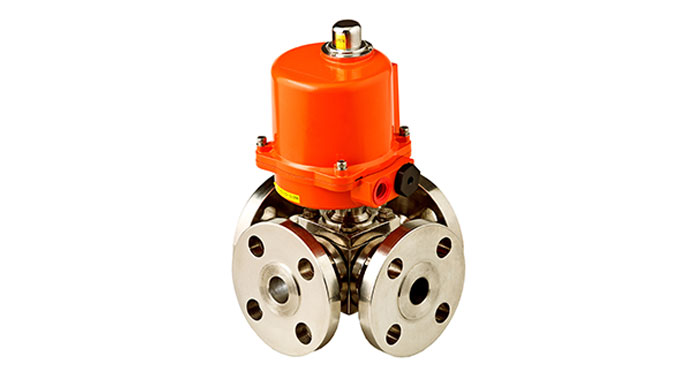

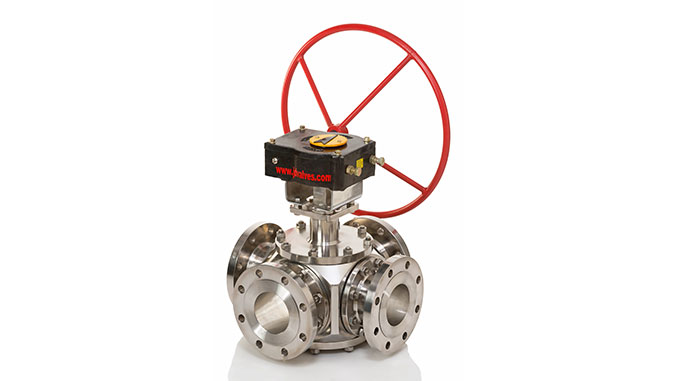

Operation : Manual / Pneumatic / Electrical
Valve Design : BS 5351 / ANSI B 16.34 / API 6D
Pressure Testing : BS 6755 Part II / API 598 / API 6D
Face to Face : ANSI B 16.10
Flange Drilling : ANSI 16.5 / BS 10 Table / DIN / IS 6392
Butt Weld End : ANSI B 16.25
Socket Weld End : ANSI B 16.11
Screwed End : ANSI B 1.20.1 [BSP / NPT]
Fire Safe Testing : BS 6755 PART II / API 607 / API 6FA
