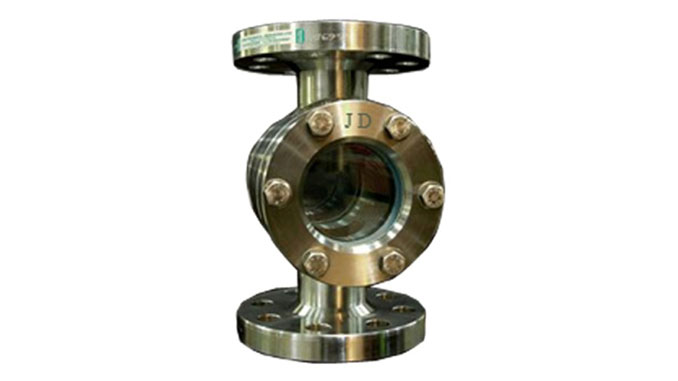

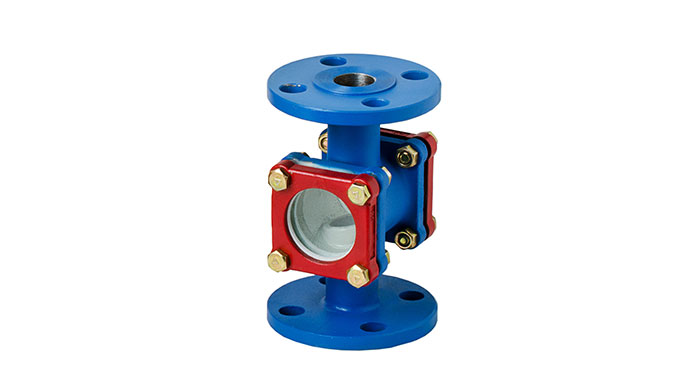

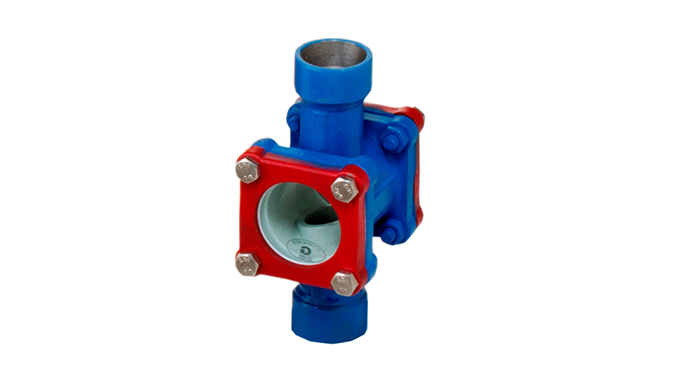

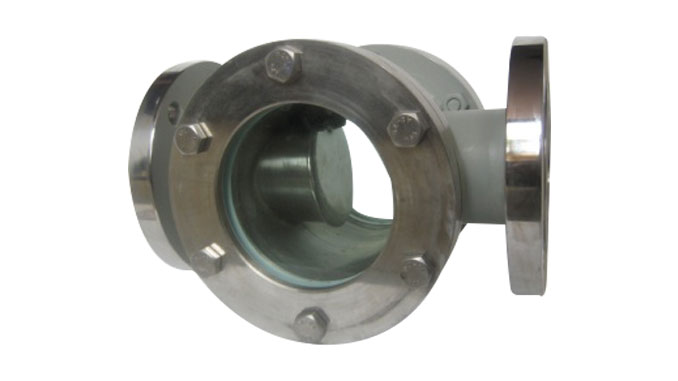

DOUBLE WINDOW TYPE SIGHT GLASS

JD Controls manufacturing Double Window Type Sight Glass (Sight Flow Indicator) in Cast Construction & Fabricated design to meet an industrial requirement of various applications to inspect the process fluid. In Double Window Sight Glass (Sight Flow Indicator) Contains Two Toughened Glasses Mounted opposite to each other. JD Double Window Type Sight Glass (Sight Flow Indicator) available with various thickness and diameter of glass to suit various applications respects to fluid pressure and temperature. Double Window Type Sight Glass (Sight Flow Indicator) is very easy to replace glass without dismantling the whole Sight Glass assembly from process line.

SALIENT FEATURE

  • Easy Maintenance
  • Available in all most all M.O.C.
  • Manufactured to the Highest Standard
  • Durable Construction
  • Tempered Borosilicate glass standard
  • Large View Area
  • P.T.F.E. [Teflon] FEP / PFA Lined Sight Glass
  • Fully Jacketed Double Window Type Sight Glass
  • Special Face to Face Dimension
  • Sizes Range from 15MM To 200MM
  • Pressure Rating PN 10
  • Design & Testing As Per Mfg. Standard
  • End Connections as per ANSI B 16.5/BS 10 Table/DIN/IS 6392 Std.
  • Material Test Certificate & Pressure Test Certificates furnished on request.
  • Tailor Made Sight Glass

Availability

Availability [Size] : DN25 / 25MM / 1" To DN300 /300MM / 12"


Double Window Type Sight Glass / Sight Flow Indicator
Availability [ Size ] : DN25 / 25MM / 1" To DN300 /300MM / 12"
Body & Cover : WCB [ CS ] / CF8 [ SS 304 ] / CF8M [ SS 316 ] / CF3M [ SS 316L ]
Gasket : P.T.F.E. Virgin / CAF
Glass : Toughned Borosillicate
Glass Length : 100 MM To 200 MM
Fasteners : CS / B7 / 2H / SS 304 / SS 316
Pressure Rating : 150# / 300# / PN6 / PN10/ PN16
Design & Testing : As Per Mfg.
Flange Drilling : ANSI 16.5 / BS 10 Table/ DIN / IS 6392
Face to Face : ANSI B 16.10
